Maier

C6

Economy combined with ultimate precision

Very precise, fast and to optimum quality MAIER machine tools were created for high-level metal-working. We develop and manufacture all of our machine tools in-house. This almost speaks for itself: Through the stability of the machine layout, its design advantages, and through the effective interaction of machine and tool technology.

At this time, MAIER is the only European specialist for CNC long-turning machines. The presence on the market of more than 1000 machines is the best proof of the value of 'Made in Germany'.

Long or short turning machines – with Maier you achieve the greatest possible productivity and you also attain new dimensions of precision. We are always delighted to advise you, and can help you to implement the requirements of your customers.

At this time, MAIER is the only European specialist for CNC long-turning machines. The presence on the market of more than 1000 machines is the best proof of the value of 'Made in Germany'.

Long or short turning machines – with Maier you achieve the greatest possible productivity and you also attain new dimensions of precision. We are always delighted to advise you, and can help you to implement the requirements of your customers.

Equipment

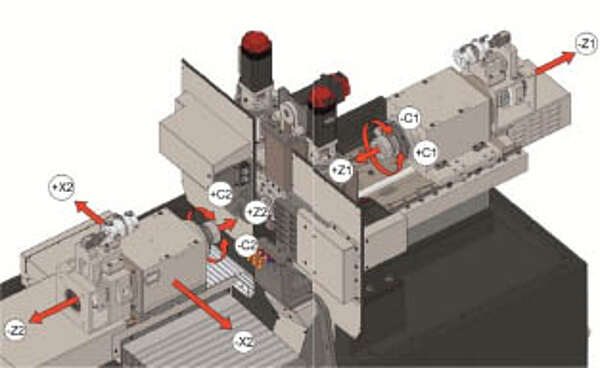

  • Basic machine with 9 axes
  • C-axes on main spindle and counter-spindle each fully NC
  • Additional mechanical indexing of the spindles (5°)
  • Pneumatic ejector for parts, max. 100 mm
  • Electronic handwheel with program check
  • Synchronous guide bush unit
  • Coolant pump, 1.5 bar and 240 l/min
  • 32m/min fast speed on all axes
  • Pneumatic parts slide and workpiece conveyor belt
  • Stable, vibration-free machine base made of polymer concrete
System 1 main spindle
  • Lathe chisel holder with 6 tool supports (16x16 mm)
  • Full NC C-axis on the main spindle
  • Additional mechanical 5° indexing

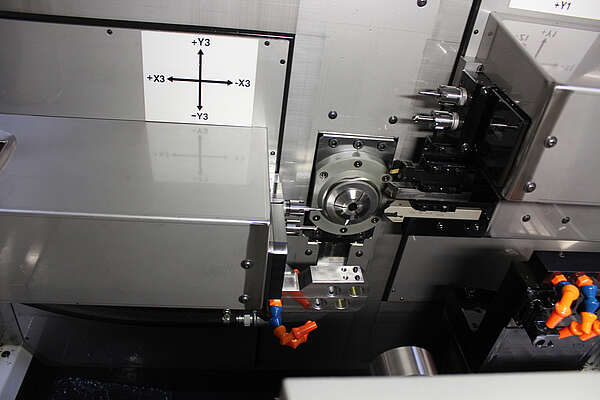

System 3 main spindle
  • Lathe chisel holder with 2 tool supports (16x16 mm)
  • Drill carrier, 4x (Ø 20 mm)
  • Powered transverse machining tools (2x)
System 2 counter-spindle
  • 4-fold tool holder for machining of reverse side
  • Full NC C-axis on the main spindle
  • Additional mechanical 5° indexing
